Sensor box IMU with AHRS

The sensor box continuously measures angular velocities and the gravity vector and calculates its orientation in 3D space. At the push of a button the recorded process data are saved and transmitted via WLAN to a plant control system.

The sensor box was developed for the joint research project of RWE Nuclear and the Fraunhofer IGD. The sensor is used in a system where an industrial robot decontaminates radioactively contaminated plant components from nuclear power plants.

to the press release from RWE Nuclear
to the press release from Fraunhofer IGD

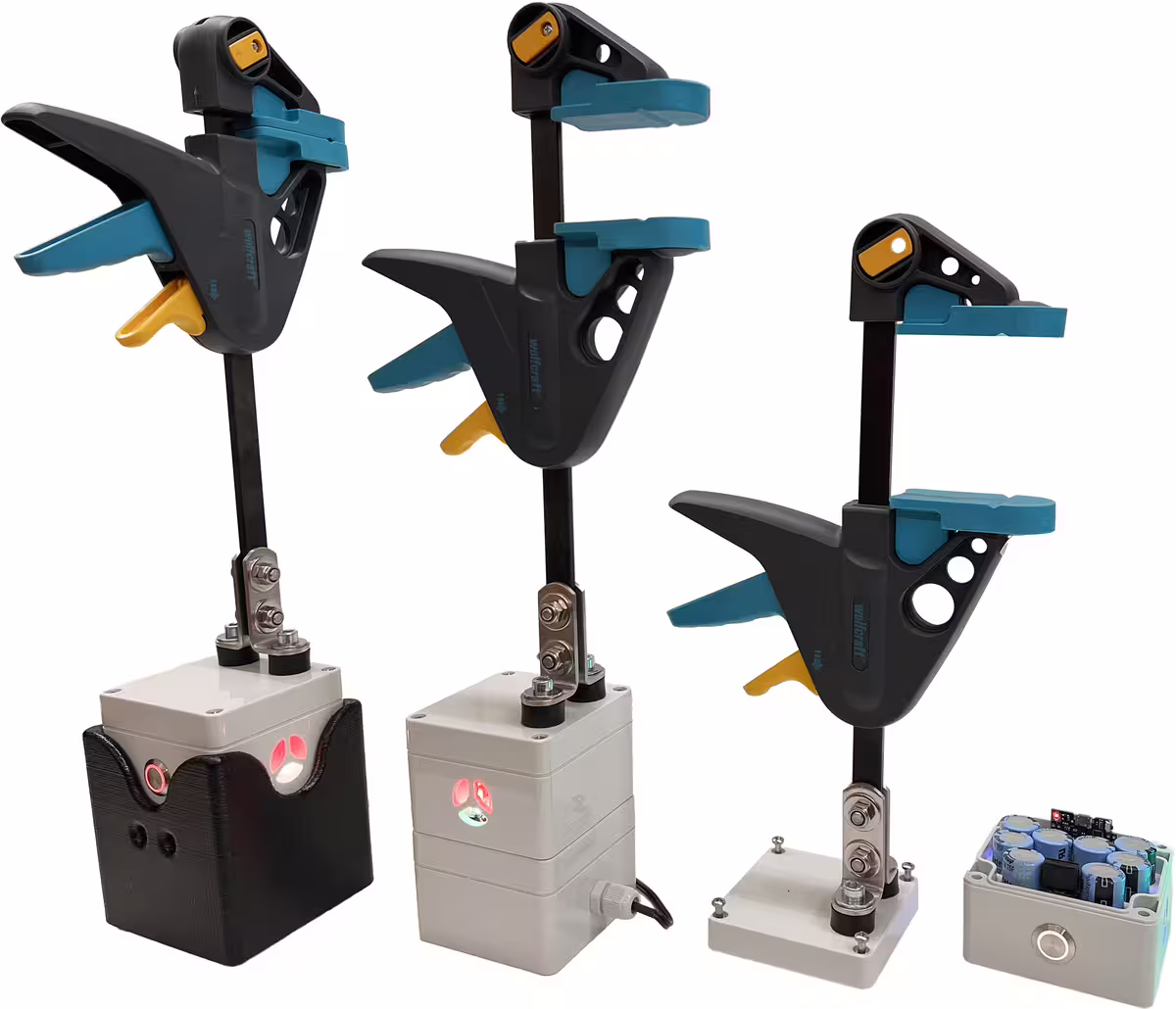

During the process the sensor box is attached to the component to be cleaned and records its rotation in 3D space between successive cleaning processes. This ensures that the objects to be cleaned are fully covered from all sides by a high-pressure jet.

to the YouTube video from Fraunhofer IGD

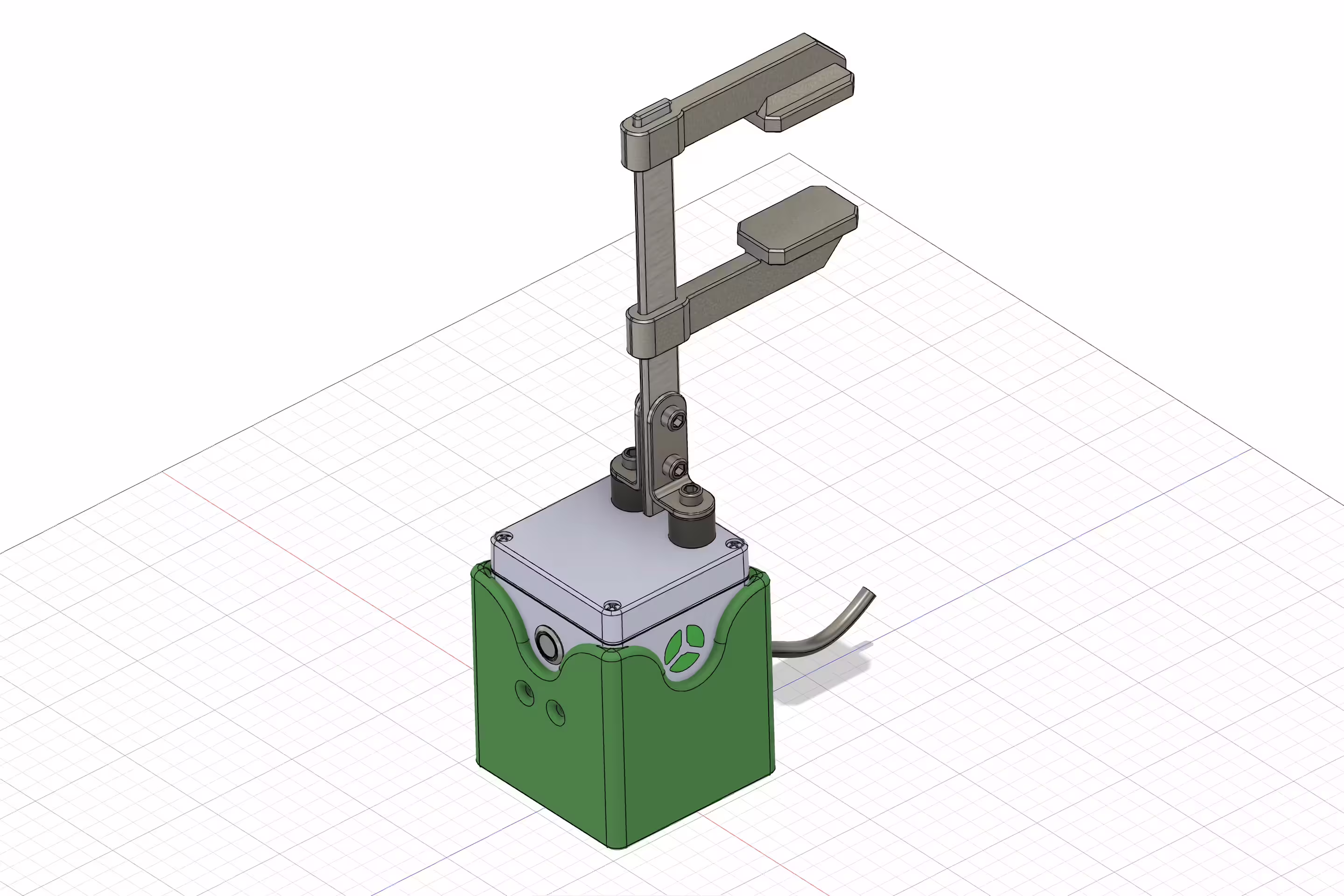

The sensor box was designed with protection class IP66 for the harsh environmental conditions of the decontamination booth.

Thanks to the inductive Qi charging station, the sensor box is contactless and always ready for use.

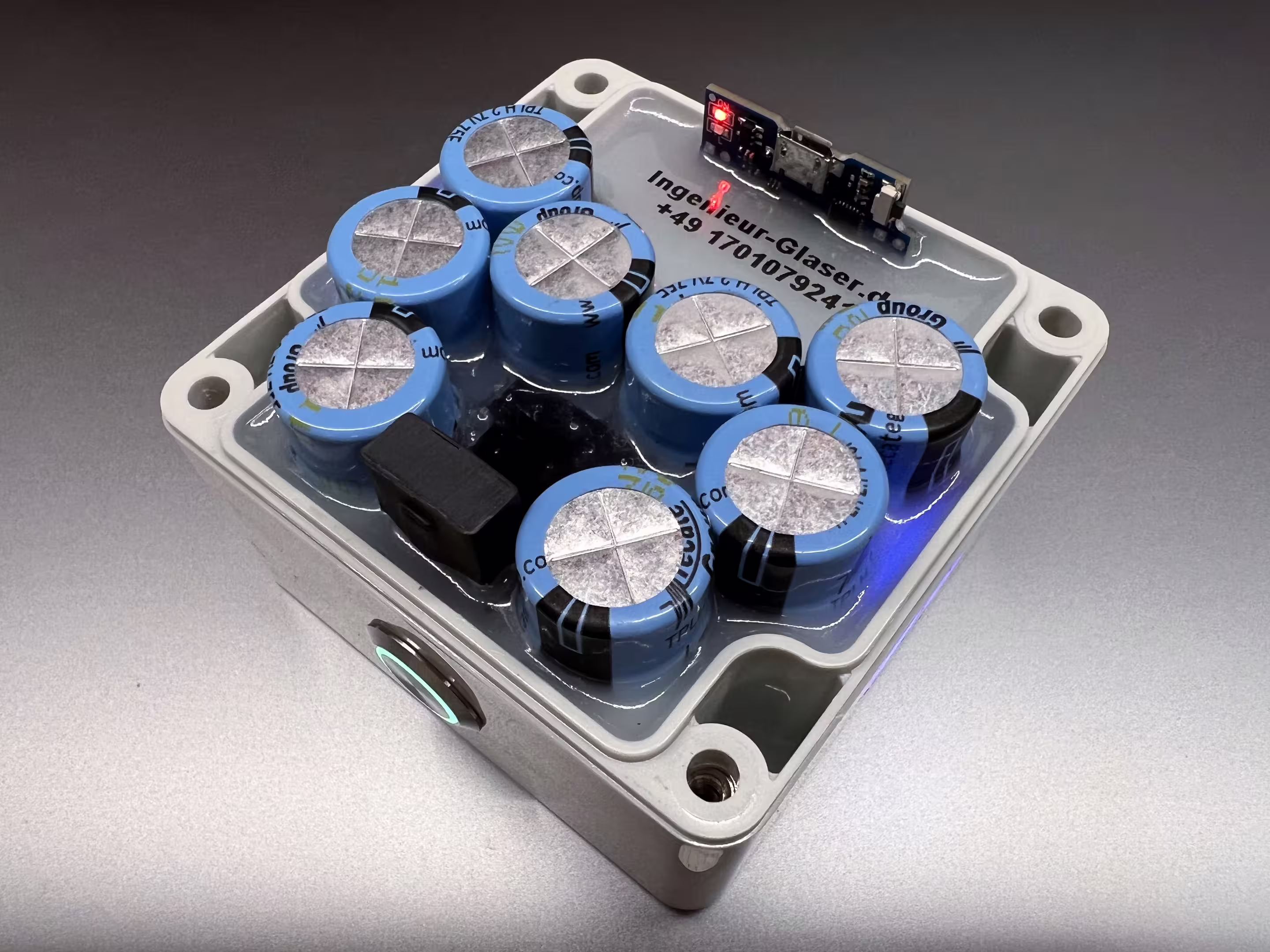

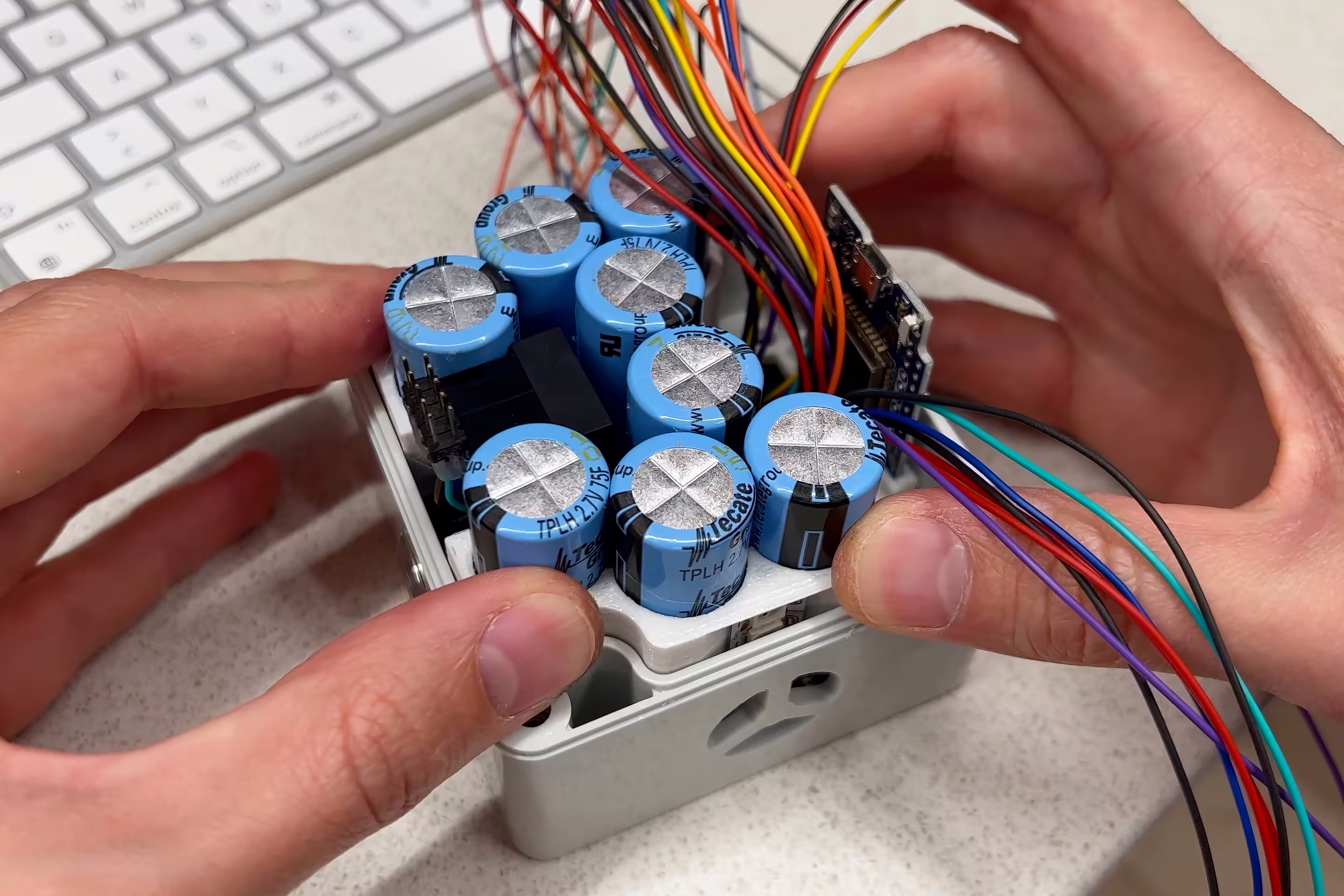

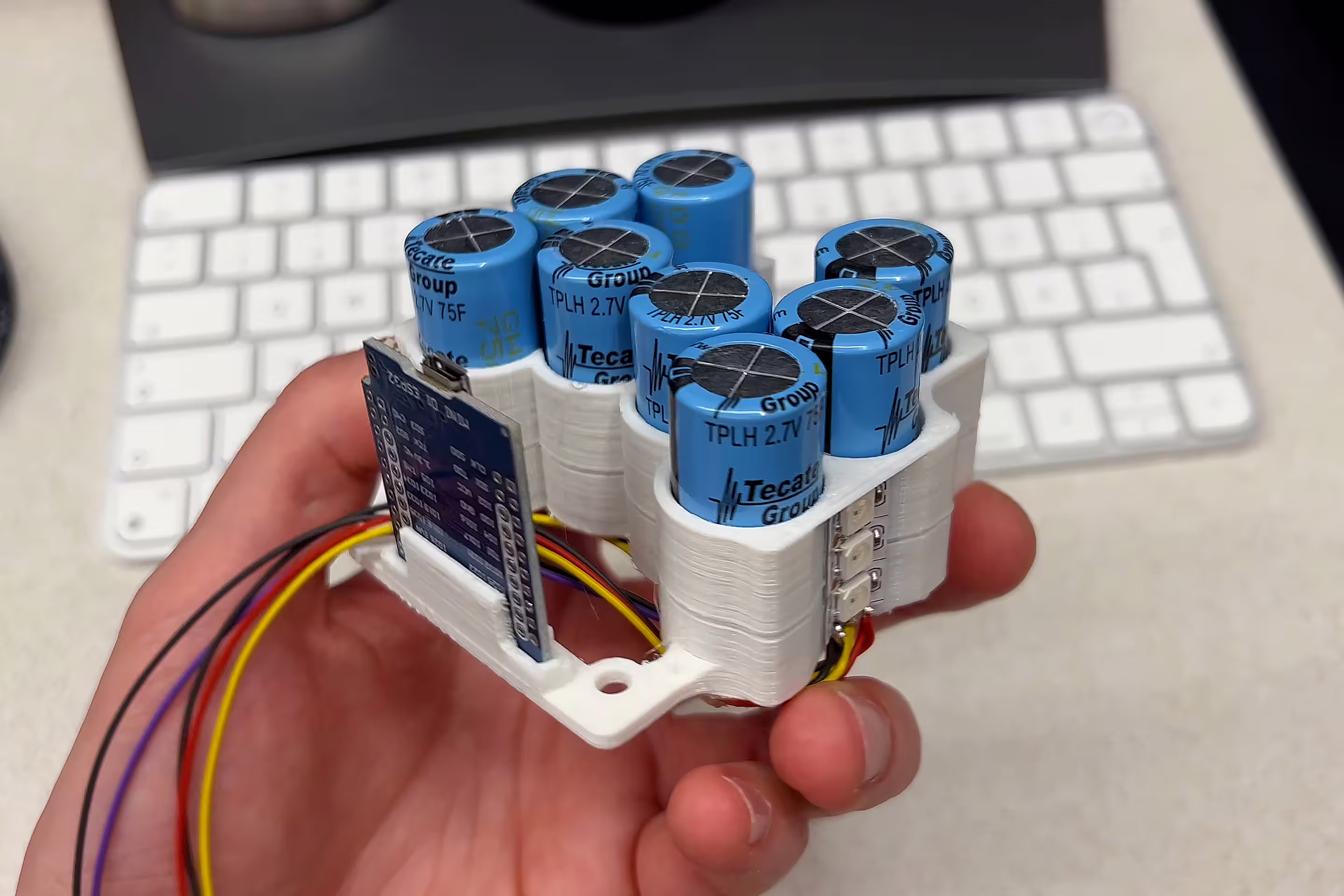

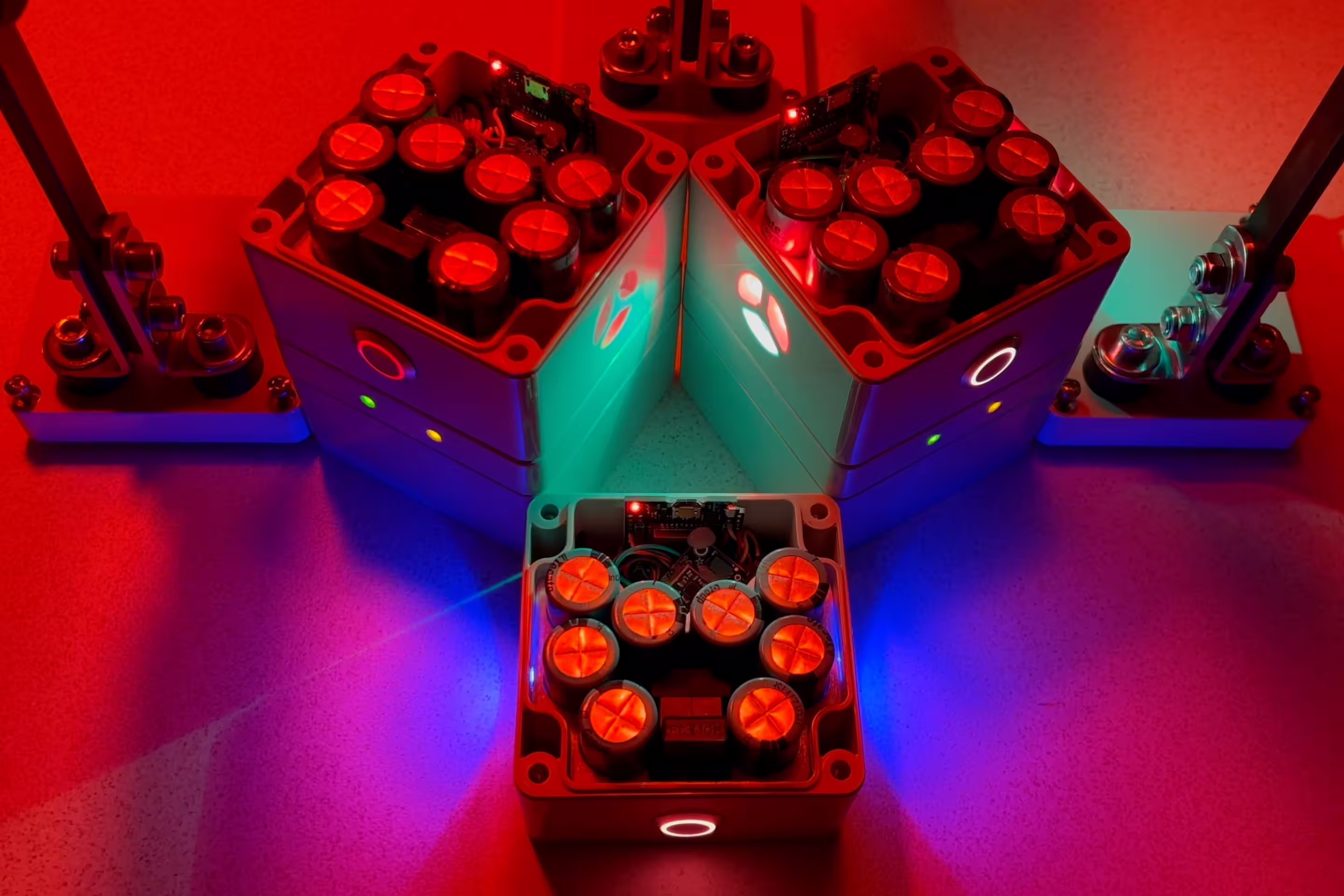

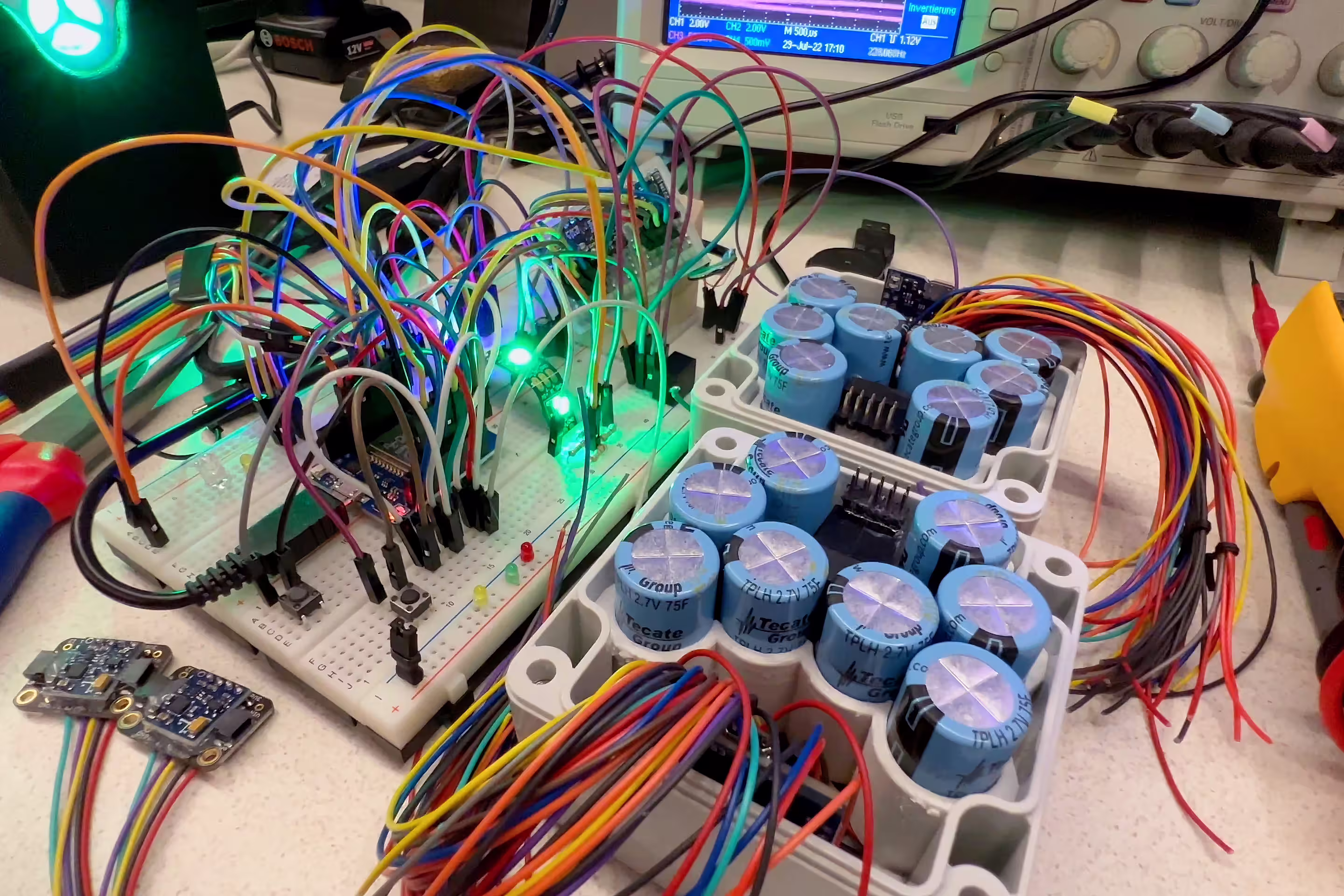

Durable gold caps serve as energy storage and were housed very space-efficiently. The electronics are placed in the free spaces between the cells.

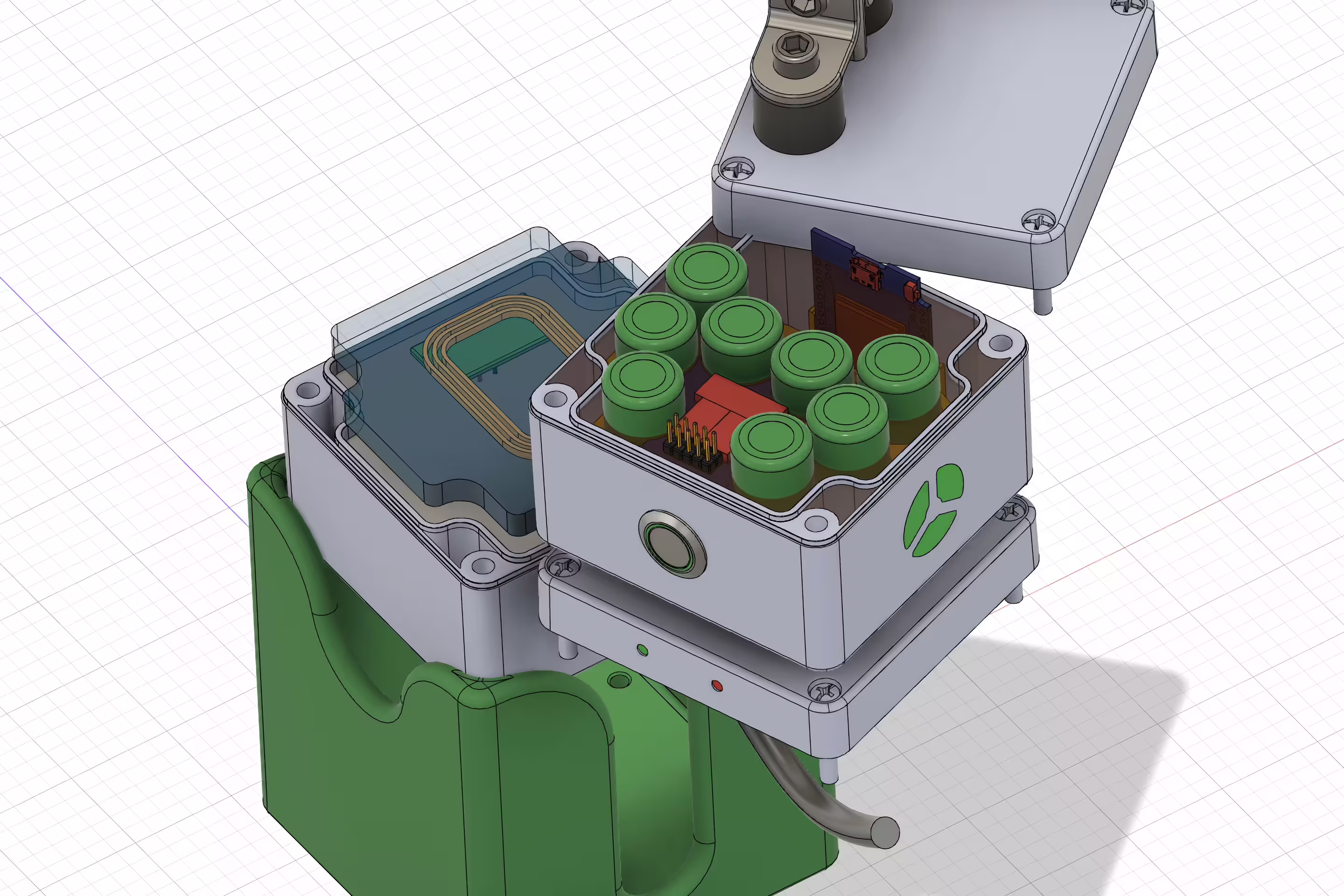

The small box contains the gold caps, the Qi module, the charge controller, the DC/DC converters, the push button, two LED strips, as well as the gyroscope with accelerometer and a digital compass. The heart of the box is an ESP32, which provides sufficient processing power with a clock frequency of 240MHz.

Already in 1969, a Kalman filter was implemented for the first time on the Apollo mission to determine the rocket's attitude. In our project too, an AHRS (Attitude Heading Reference System) with a Kalman filter is used to combine the advantages of gyroscope and accelerometer and to enable the most precise determination of the absolute attitude possible.

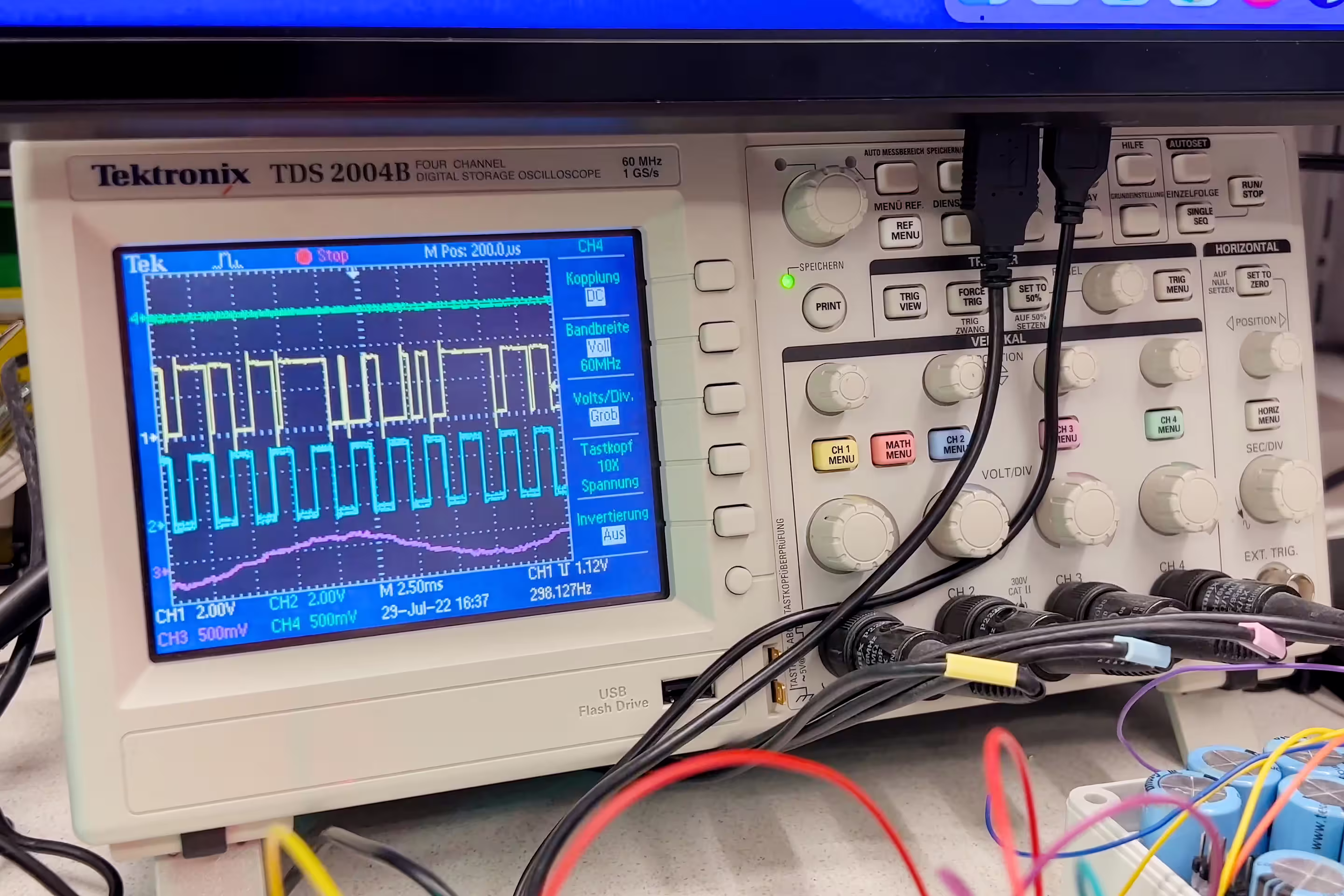

The software was written in the hardware-near programming language C++ using the Visual Studio Code development environment. Using interrupts and the real-time operating system FreeRTOS, the computationally intensive and very time-critical processes are distributed across multiple CPU cores. Custom functions for computing with transformation matrices and quaternions save processing power and thus energy.

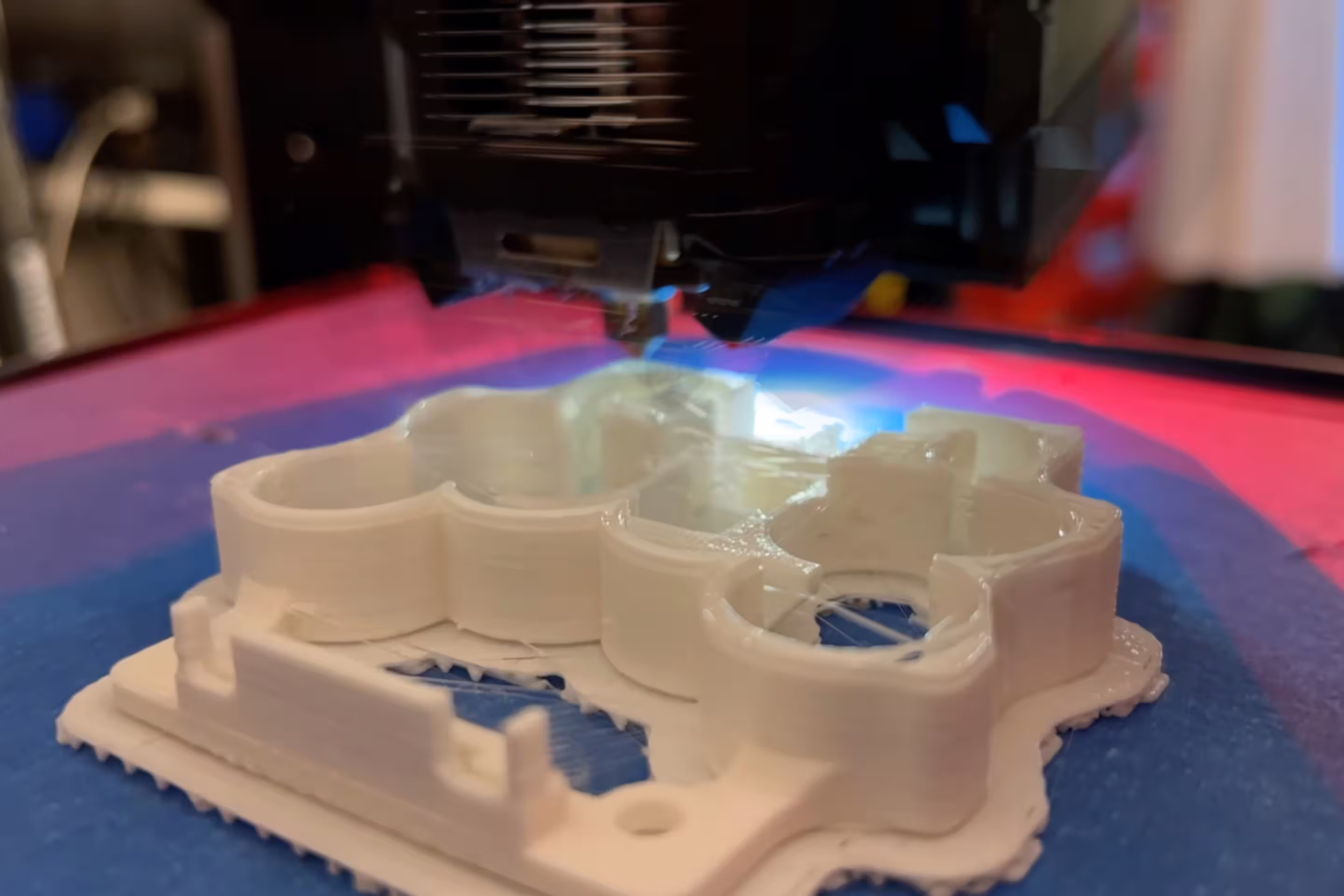

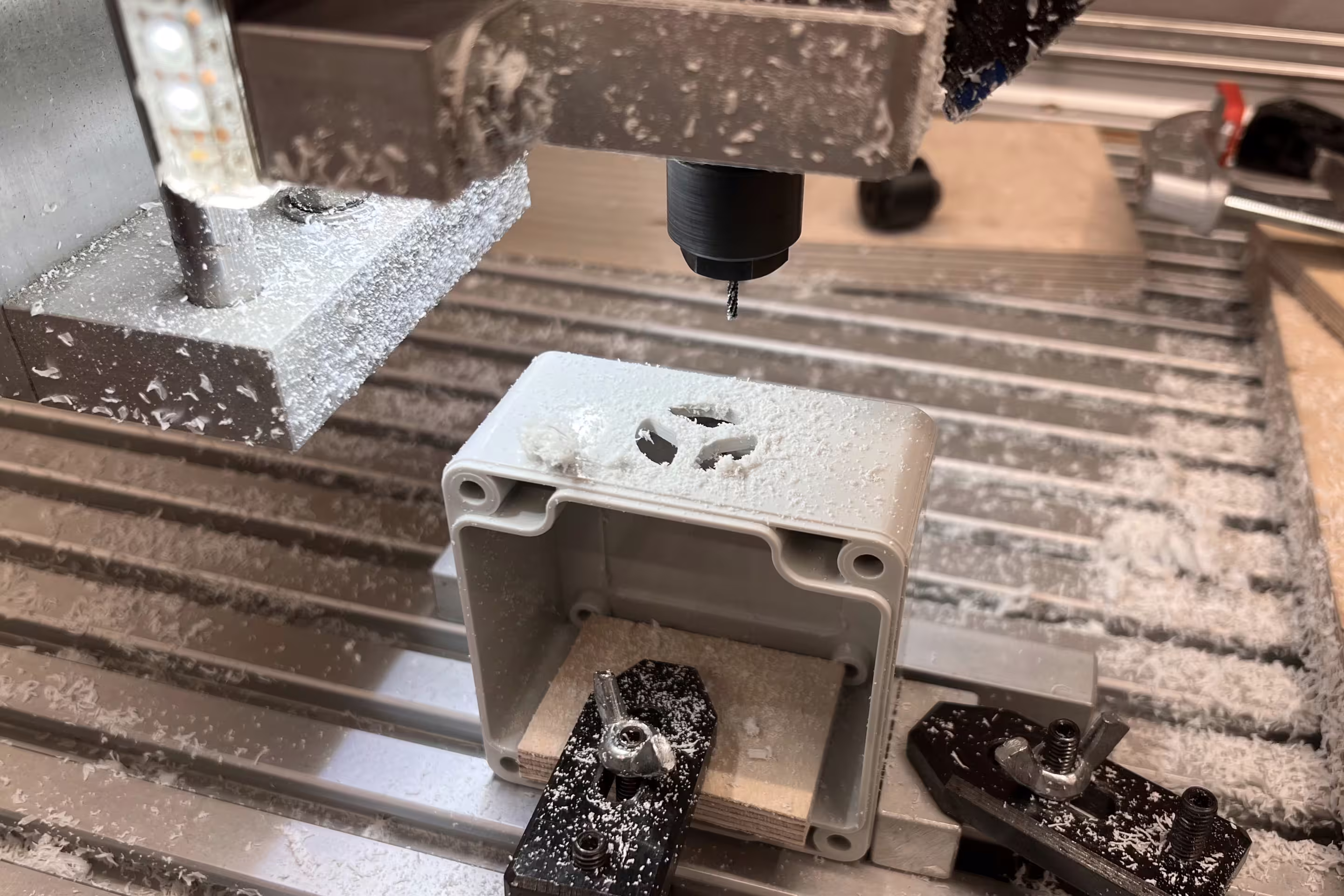

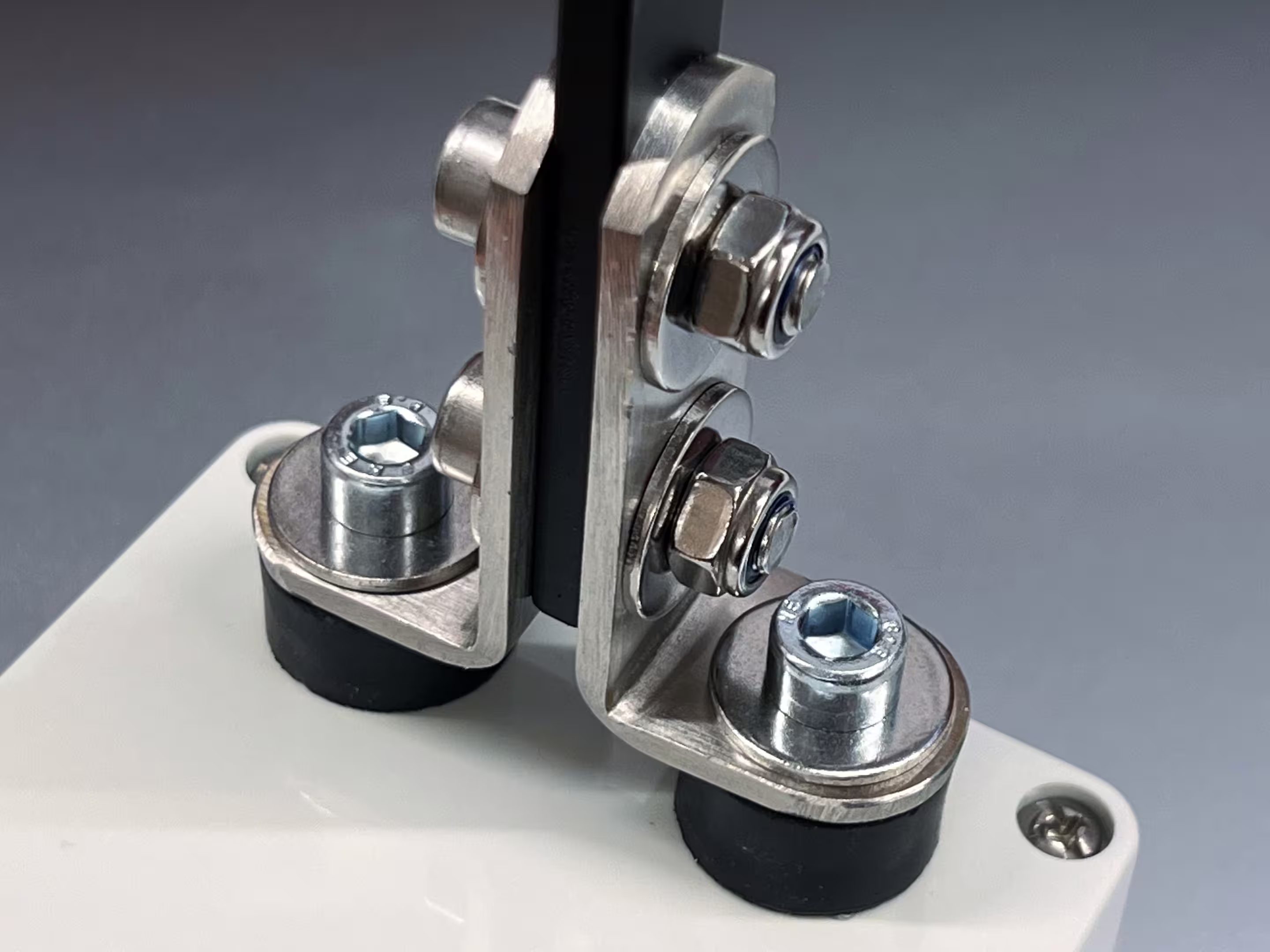

The robust Euromas housings made of polycarbonate were machined with a CNC milling machine and the magazine for the gold caps was printed with a 3D printer from PLA.

Wireless charging instead of contacts. Gold cap instead of Li-ion. Potting instead of wear. The combination of advantages from additive and subtractive manufacturing techniques. A good concept developed in close consultation with the customer.

Due to the short communication channels, less than a month elapsed from the preparation of the offer to the completion of the sensor box. Development, design, programming and manufacturing were carried out almost simultaneously and without additional interfaces by further external service providers.

In the charging cradle, red and green light indicate the current charge level. The window of the box fills accordingly.

In the charging cradle, the window of the box fills from bottom to top with green light according to the current charge level, displacing the red. During operation and the reference routine, the RGB LEDs pulse in the currently dominant axis color.
